IGBT Chopper
![](/note/igbt_chopper/media/top_hu90d6413819f86ac5ea95d86b55a77f50_998427_920x0_resize_q70_box.jpg)

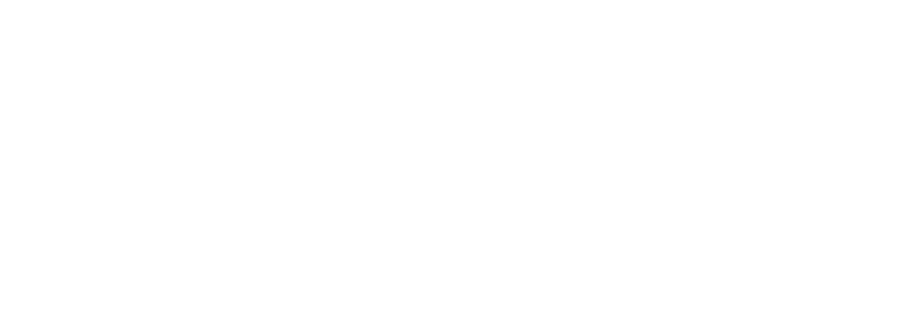

A useful thing to have for testing high voltage transformers is a simple chopper. This one switches a 600 V IGBT with an adjustable frequency between 50 Hz and 29 kHz (lower frequencies are possible with an external timing capacitor) and any duty cycle between 0 and 100%.
![](/note/igbt_chopper/media/schematic_hubc0af7602d2844e9df3f68df7fb89725_11891_920x0_resize_q70_box_3.png)
![](/note/igbt_chopper/media/schematic_dark_hu383f0320fd1f2ce27b9d0bf1bd04fc05_14507_920x0_resize_q70_box_3.png)
![](/note/igbt_chopper/media/bottom_huca6ee9f708e1fa41ff0e4252f848699e_1697290_920x0_resize_q70_box.jpg)
